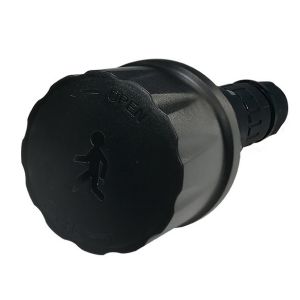

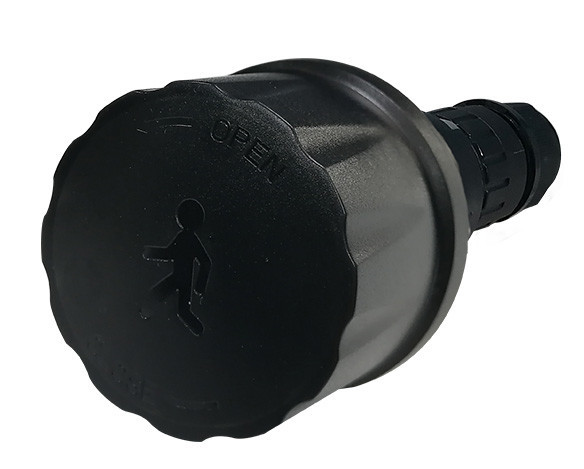

Photocell Function Daylight Harvesting Sensor RoHS CE Certificate

Brand Name : HAISEN

Model Number : HD06VCRH 7A

Certification : RoHS CE

Place of Origin : China

MOQ : 100PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100,000pcs Per Month

Delivery Time : 1-3 days for sample order, 2-3 weeks for bulk order

Packaging Details : Bubble pack, paper flat, outer carton.

Operating Voltage : 10.5-15V DC (Currect Required>30mA)

Standby Consumption : <20mA (Power Consumption）

Dim Output : DIM 0-10V

Operating temperature : -20°C~+60°C

Color : Black

IP Grade : IP65

Adaptation of remote control : HD05R

Warranty : 5 years

Contact Now

Photocell Function Daylight Harvesting Sensor RoHS CE Certificate

Zhaga Base Cover Interchange Photocell And Daylight Harvesting RoHS CE Certificate

*HD06VCRH 7A specification.pdf*

Features:

• Photocell & Daylight Harvesting.
• With Zhaga Book 18 Receptacle.
• Bi-level Dimmable & Daylight Brightness Learning.
• LCD Remote Control.

Sensor Parameter:

Photocell
2Lux/10Lux Light will be off when ambient brightness is 10 times of preset lux level
Daylight Harvesting
30Lux/50Lux/80Lux/120Lux/200Lux/250Lux/300Lux/350Lux/400Lux
Ambient Brightness Learning
Remote control to learn ambient brightness and daylight harvesting
Control
Standard Partner HD05R, the LCD screen display remote(purchase seperately)

Other Parameter:

INPUT
Input Range

10.5-15V DC
OUTPUT
Signal
DIM 0-10V
ENVIRONMENT
Storage Temp
-20°C~+60°C

CERTIFICATE & STANDARDS
Environmental Requirements
In accordance with CE ROHS

IP Rating
IP65
Warranty
5 Years

Wiring Diagram:

Photocell Function Daylight Harvesting Sensor RoHS CE Certificate Photocell Function Daylight Harvesting Sensor RoHS CE Certificate

Installation:

Photocell Function Daylight Harvesting Sensor RoHS CE Certificate

*Please contact us for more details*
